DNS Explained with dig: From Root Servers to Google.com

When you type google.com into your browser, a surprising amount of distributed system machinery spins up behind the scenes.
At the heart of it all is DNS — the Domain Name System.

This article breaks DNS down layer by layer using the dig command, so you can see how name resolution actually works instead of memorizing theory.

---

DNS: The Internet’s Phonebook ☎️

Humans remember names.
Machines route traffic using IP addresses.

DNS exists to translate human-friendly domain names like:

google.com

into machine-friendly IP addresses like:

142.250.190.14

Without DNS, we’d be browsing the internet by typing numbers—clearly not ideal.

Key idea:

DNS is a globally distributed, hierarchical database optimized for reads.

---

Introducing dig: Your DNS X-Ray Tool 🔍

dig (Domain Information Groper) is a command-line tool that lets you inspect DNS resolution at every layer.

You use dig when you want to:

• Debug DNS issues

• Understand name server delegation

• See authoritative vs recursive behavior

• Learn how browsers actually resolve domains

Basic syntax:

dig <name> <record-type>

---

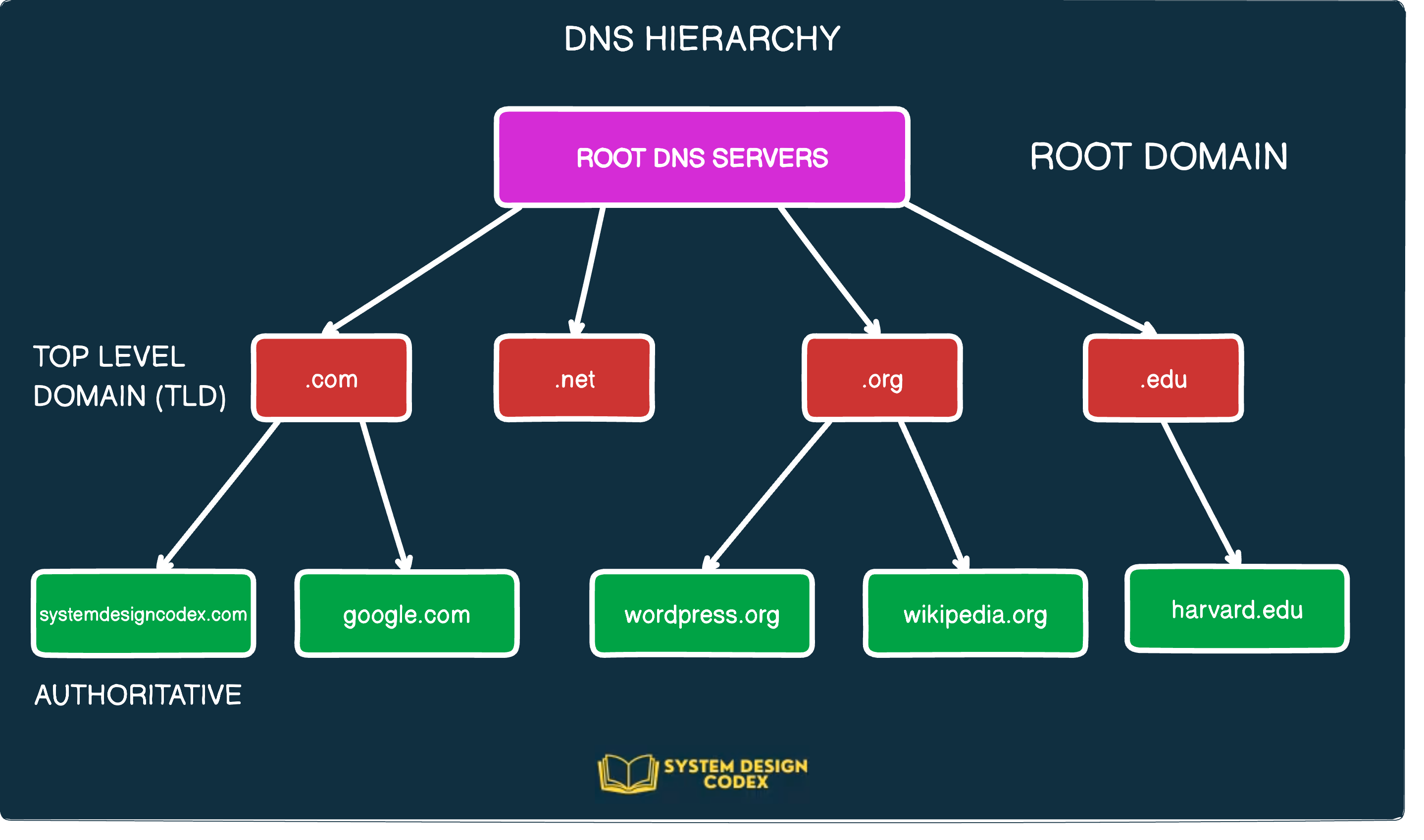

DNS Resolution Happens in Layers

DNS resolution is not a single lookup.
It’s a chain of delegations:

4

Root servers (.)
   ↓
TLD servers (.com, .org, .net)
   ↓
Authoritative servers (google.com)

Let’s walk this hierarchy using dig.

---

dig . NS — Root Name Servers 🌍

dig . NS

This asks:

“Who is authoritative for the root zone?”

What you’ll see

• Servers like a.root-servers.net

• Managed by organizations like Verisign, ICANN, etc.

Key points:

• There are 13 logical root servers (A–M)

• Each is anycasted globally (hundreds of physical instances)

• Root servers do not know IPs for google.com

• They only know where .com lives

Think of them as:

“I don’t know the answer, but I know who to ask next.”

---

dig com NS — TLD Name Servers 📛

dig com NS

This queries the Top-Level Domain (TLD) servers for .com.

What this tells us

• .com is managed by Verisign

• These servers know:

  • Which name servers are authoritative for google.com

• They still don’t know google.com’s IP

TLD servers act as:

A directory of domains registered under .com

---

dig google.com NS — Authoritative Name Servers 🏛️

dig google.com NS

Now we’re asking:

“Who is authoritative for google.com?”

Output highlights

• Name servers like:

    ns1.google.com
    ns2.google.com
    ns3.google.com
    ns4.google.com


These servers:

• Are controlled by Google

• Hold the actual DNS records

• Provide final answers (A, AAAA, MX, TXT, etc.)

This is where truth lives in DNS.

---

dig google.com — Full DNS Resolution 🔄

dig google.com

This returns:

• A records (IPv4)

• Possibly AAAA records (IPv6)

• TTL values

• Which server answered the query

But here’s the important part:

Your system did not query root → TLD → authoritative directly.

Instead, this was handled by a recursive resolver.

---

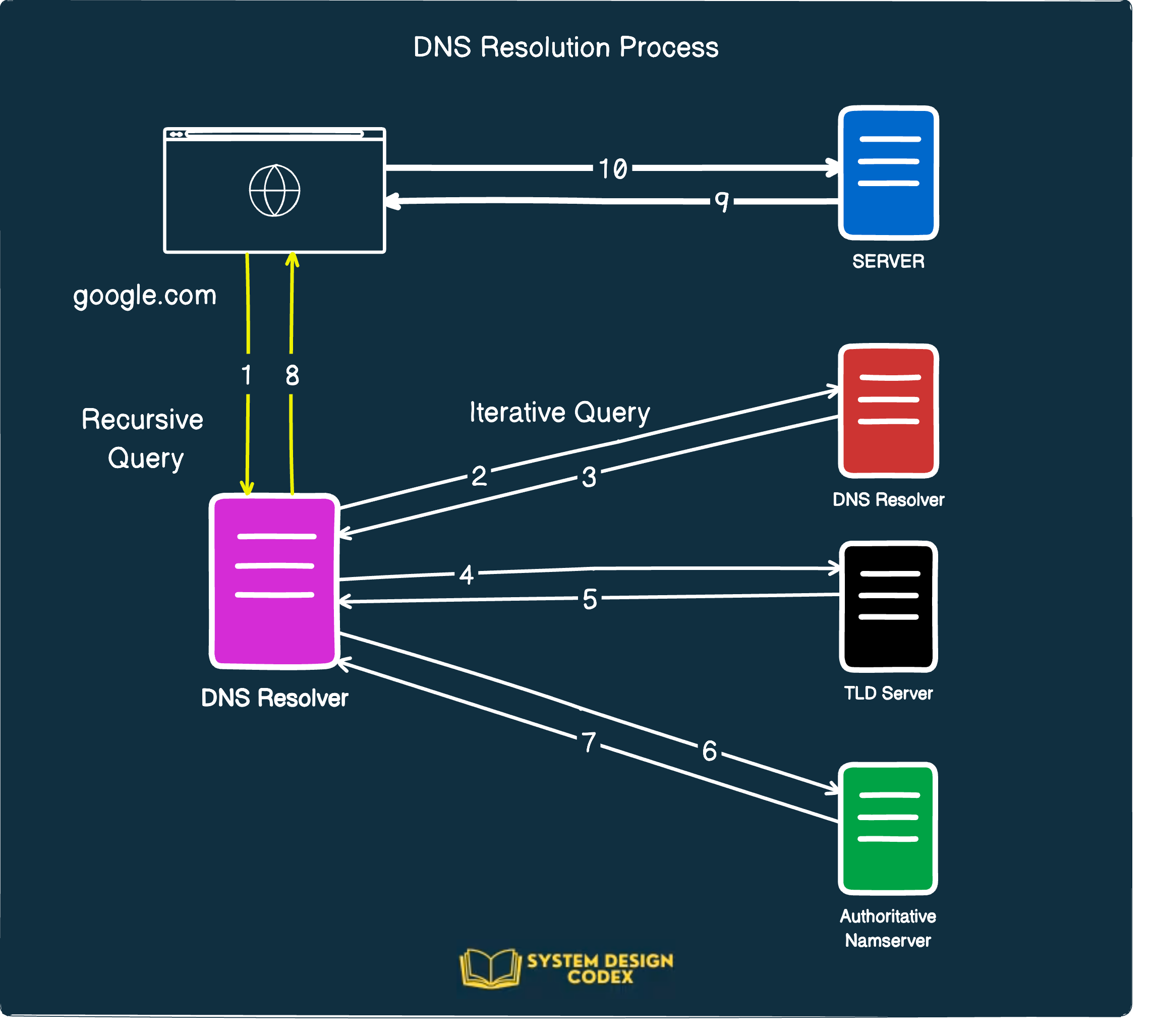

Recursive Resolvers: The Hidden Middleman 🧠

Your laptop/browser typically asks:

• ISP DNS

• Google DNS (8.8.8.8)

• Cloudflare (1.1.1.1)

4

What the recursive resolver does

1. Ask root servers for .com

2. Ask .com servers for google.com

3. Ask Google’s authoritative servers for IP

4. Cache the result

5. Return the IP to your browser

All in milliseconds.

---

Mapping dig Commands to DNS Stages

4

This mapping is gold for system design interviews.

---

Why NS Records Matter in System Design

NS records:

• Enable horizontal scaling of DNS

• Allow delegation without central coordination

• Prevent single points of failure

• Make DNS one of the most resilient systems ever built

Design insight:

DNS works because no server needs to know everything.

---

Connecting DNS to Real Browser Requests 🌐

When you type https://google.com:

1. DNS resolves google.com → IP

2. TCP connection is established

3. TLS handshake happens

4. HTTP request is sent

If DNS fails:

• Nothing else even starts

That’s why DNS latency and availability are critical at scale.

---

Final Takeaways

• DNS is a hierarchical, distributed database

• dig lets you observe DNS like a systems engineer

• Root → TLD → Authoritative is the backbone of resolution

• Recursive resolvers hide complexity but rely on this hierarchy

• Understanding DNS deeply pays off in backend, infra, and SRE roles
